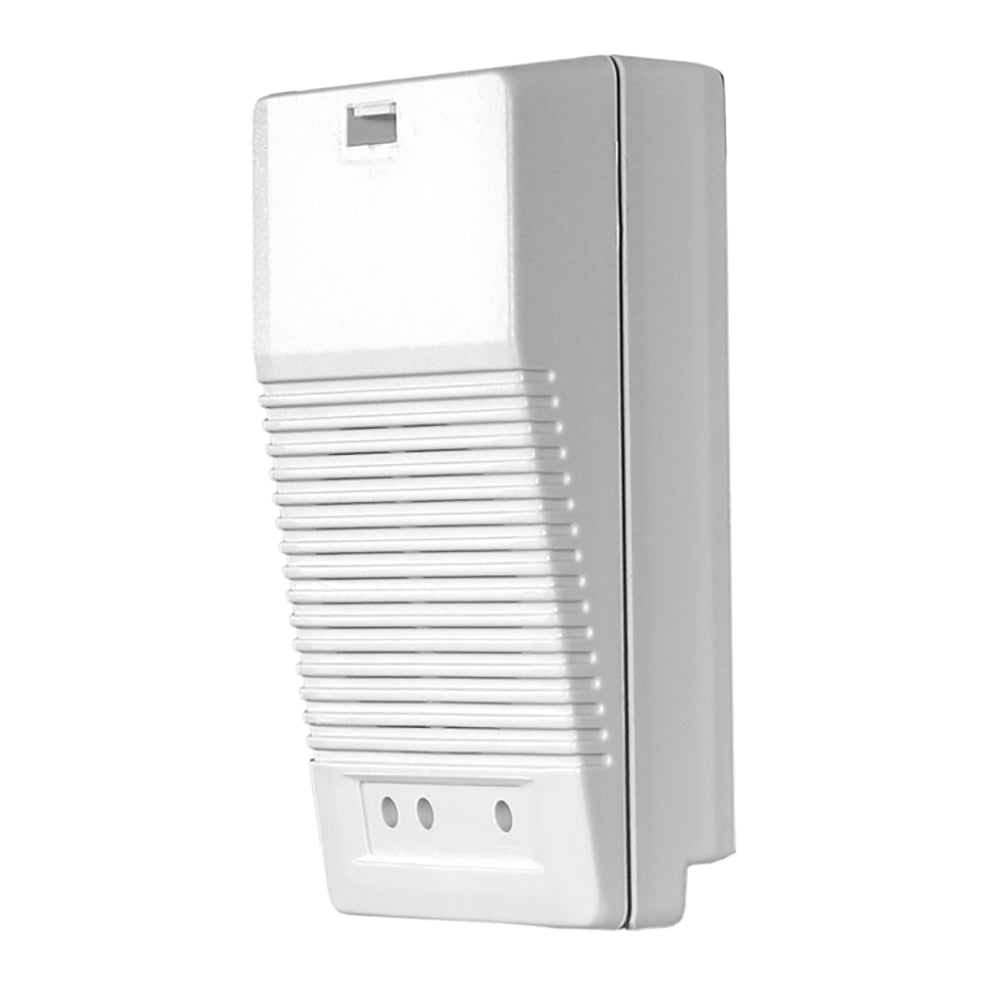

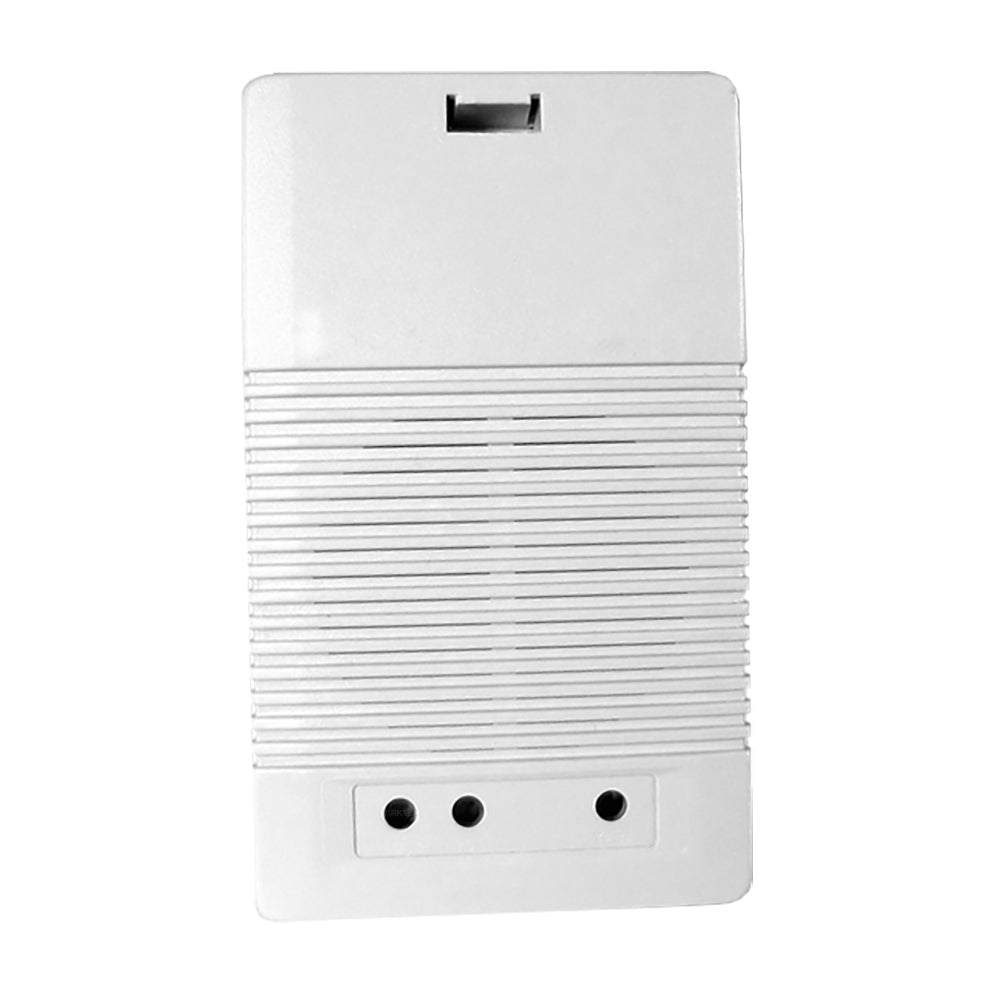

Algo 1825PM Duet Plus Analog Loud Ringer & Paging Amplifier

The Algo 1825PM Duet Plus is an analog loud ringer with paging amplifier that can be wall mounted in office, home business, or quiet warehouse locations utilizing its built in amplifier and speaker to generate up to 93 dBA (at 1M) warble tones.

By adding the optional Algo 1186 Loudspeaker (not included) output can be increased up to 112 dBA (at 1M). The combination of lower frequency warble and high sound pressure level creates an extremely effective and pleasant telephone alert where additional ring volume is required. Additionally, the Algo 1825PM Duet Plus can provide amplified voice paging as a separate application or in combination with loud ringing utilizing the same speaker.

• Provides Loud Ringer function and features a built-in paging amplifier

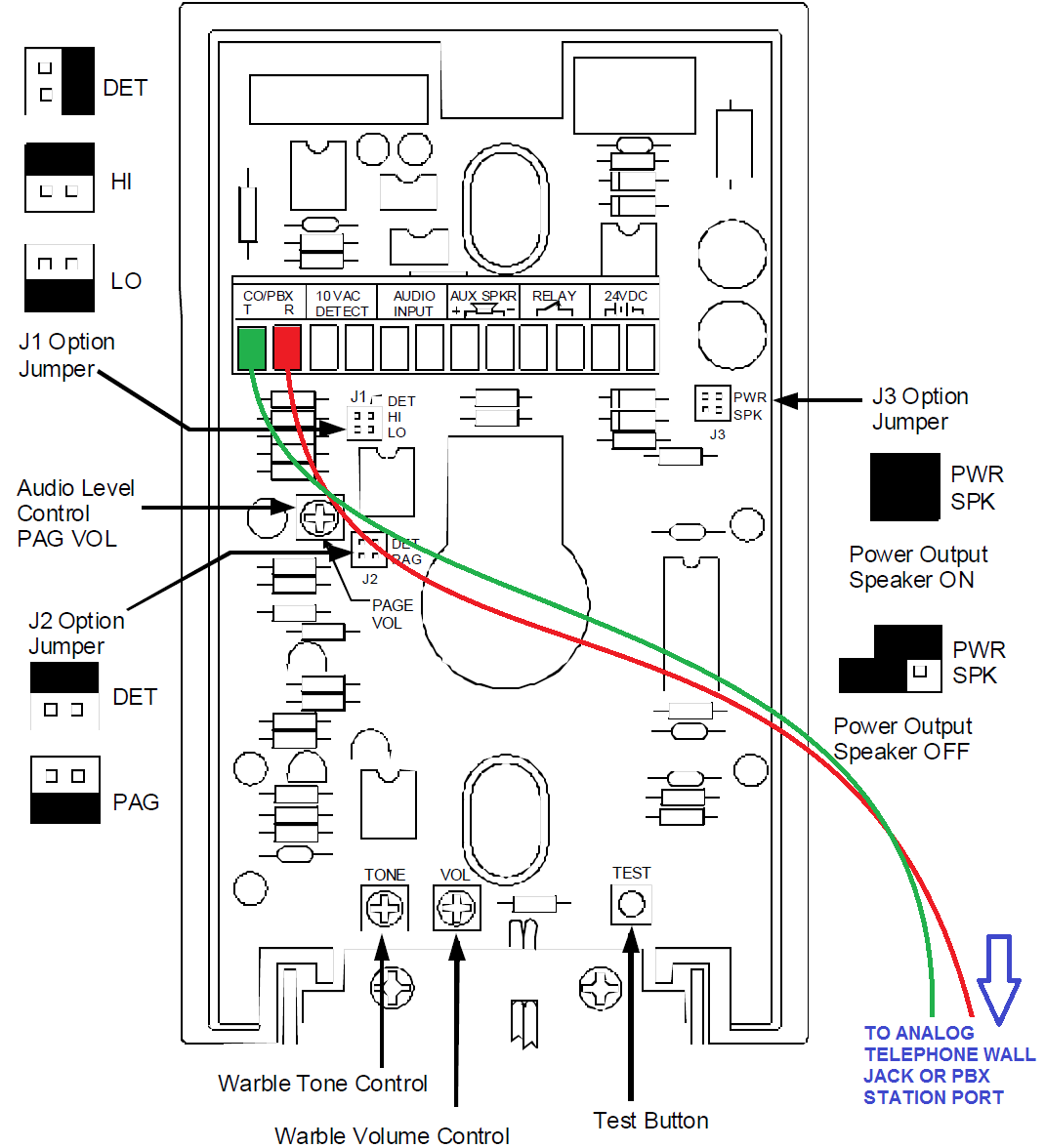

• 90 volt ring detection via tip/ring pair (Tip = Green, Ring = Red)
• Interfaces easily with optional Algo 1186 Horn Speaker to provide increased ringing or voice notification volume (up to 112 dBA SPL at 1m (3.3ft.))
• Supports Visual Ring indication with optional (not included) 1126/1128 Analog LED Strobe Light, 1127 Mini Visual Alerter, AR26LPW, or AR26LPSW Strobe with Siren

• Dry contact activation from push-button, Algo doorphone controllers, or PBX Night Bell/Auxiliary Ring contacts

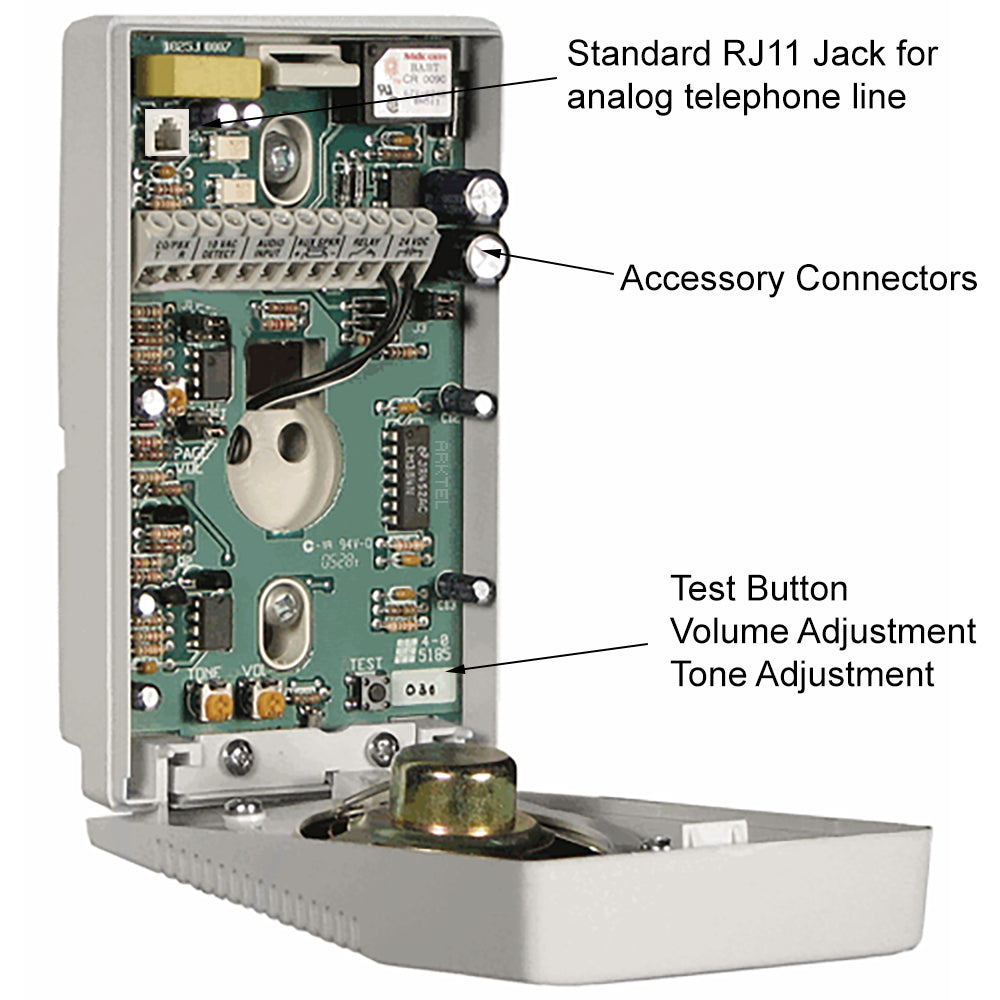

For small business applications this provides an extremely cost effective and high performance solution for loud ringing and loud paging into a warehouse, storage yard, or machine shop. Separate volume control is provided for voice page and loud ring levels. Other features include adjustable warble frequency, adjustable volume, and integrated test button. Includes 24V power supply. For analog installations only - does NOT support VoIP.
